What is SQL?

By -

SQL is a standard language for accessing and manipulating databases.

What is SQL?

• SQL stands for Structured Query Language

• SQL lets you access and manipulate databases

• SQL is an ANSI (American National Standards Institute) standard

What Can SQL do?

• SQL can execute queries against a database

• SQL can retrieve data from a database

• SQL can insert records in a database

• SQL can update records in a database

• SQL can delete records from a database 2i 39 h 0

• SQL can create new databases

• SQL can create new tables in a database

• SQL can create stored procedures in a database

• SQL can create views in a database

• SQL can set permissions on tables, procedures, and views

Database Tables

A database most often contains one or more tables. Each table is identified by a name (e.g. "Customers" or "Orders"). Tables contain records (rows) with data.

Below is an example of a table called "Persons":


The table above contains three records (one for each person) and five columns (P_Id, LastName, FirstName, Address, and City).

SQL Statements

Most of the actions you need to perform on a database are done with SQL statements. The following SQL statement will select all the records in the "Persons" table:

SELECT * FROM Persons

In this tutorial we will teach you all about the different SQL statements.

Keep in Mind That...

• SQL is not case sensitive

Semicolon after SQL Statements?

Some database systems require a semicolon at the end of each SQL statement.

Semicolon is the standard way to separate each SQL statement in database systems that allow more than one SQL statement to be executed in the same call to the server.

We are using MS Access and SQL Server 2000 and we do not have to put a semicolon after each SQL statement, but some database programs force you to use it.

SQL DML and DDL

SQL can be divided into two parts: The Data Manipulation Language (DML) and the Data Definition Language (DDL).

The query and update commands form the DML part of SQL:

• SELECT - extracts data from a database

• UPDATE - updates data in a database

• DELETE - deletes data from a database

• INSERT INTO - inserts new data into a database

The DDL part of SQL permits database tables to be created or deleted. It also define indexes (keys), specify links between tables, and impose constraints between tables. The most important DDL statements in SQL are:

• CREATE DATABASE - creates a new database

• ALTER DATABASE - modifies a database

• CREATE TABLE - creates a new table

• ALTER TABLE - modifies a table

• DROP TABLE - deletes a table

The SQL SELECT Statement

The SELECT statement is used to select data from a database. The result is stored in a result table, called the result-set.


Note: SQL is not case sensitive. SELECT is the same as select.

An SQL SELECT Example

The "Persons" table:


Now we want to select the content of the columns named "LastName" and "FirstName" from the table above.

We use the following SELECT statement:


SELECT * Example

Now we want to select all the columns from the "Persons" table.

We use the following SELECT statement:


SQL SELECT DISTINCT Statement

The SQL SELECT DISTINCT Statement

In a table, some of the columns may contain duplicate values. This is not a problem, however, sometimes you will want to list only the different (distinct) values in a table.

The DISTINCT keyword can be used to return only distinct (different) values.


Now we want to select only the distinct values from the column named "City" from the table above. We use the following SELECT statement:

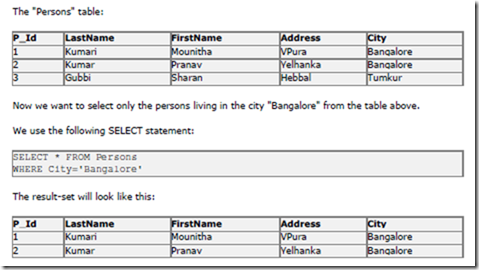

The WHERE clause is used to filter records.

The WHERE Clause

The WHERE clause is used to extract only those records that fulfill a specified criterion.



Quotes Around Text Fields

SQL uses single quotes around text values (most database systems will also accept double quotes). Although, numeric values should not be enclosed in quotes.

For text values:
