Evaluation of Expressions

Evaluation of Expressions

So far, we have studied how individual relational operations are carried out. Now we consider how to evaluate an expression containing multiple operations. The obvious way to evaluate an expression is simply to evaluate one operation at a time, in an appropriate order. The result of each evaluation is materialized in a temporary relation for subsequent use. A disadvantage to this approach is the need to construct the temporary relations, which (unless they are small) must be written to disk. An alternative approach is to evaluate several operations simultaneously in a pipeline, with the results of one operation passed on to the next, without the need to store a temporary relation.

In Sections 13.7.1 and 13.7.2, we consider both the materialization approach and the pipelining approach. We shall see that the costs of these approaches can differ substantially, but also that there are cases where only the materialization approach is feasible.

Materialization

It is easiest to understand intuitively how to evaluate an expression by looking at a pictorial representation of the expression in an operator tree. Consider the expression

If we apply the materialization approach, we start from the lowest-level operations in the expression (at the bottom of the tree). In our example, there is only one such operation; the selection operation on account. The inputs to the lowest-level operations are relations in the database. We execute these operations by the algorithms that we studied earlier, and we store the results in temporary relations. We can use these temporary relations to execute the operations at the next level up in the tree, where the inputs now are either temporary relations or relations stored in the database. In our example, the inputs to the join are the customer relation and the temporary relation created by the selection on account. The join can now be evaluated, creating another temporary relation.

By repeating the process, we will eventually evaluate the operation at the root of the tree, giving the final result of the expression. In our example, we get the final result by executing the projection operation at the root of the tree, using as input the temporary relation created by the join.

Evaluation as just described is called materialized evaluation, since the results of each intermediate operation are created (materialized) and then are used for evaluation of the next-level operations.

The cost of a materialized evaluation is not simply the sum of the costs of the operations involved. When we computed the cost estimates of algorithms, we ignored the cost of writing the result of the operation to disk. To compute the cost of evaluating an expression as done here, we have to add the costs of all the operations, as well as the cost of writing the intermediate results to disk. We assume that the records of the result accumulate in a buffer, and, when the buffer is full, they are written to disk. The cost of writing out the result can be estimated as nr /fr , where nr is the estimated number of tuples in the result relation r, and fr is the blocking factor of the result relation, that is, the number of records of r that will fit in a block.

Double buffering (using two buffers, with one continuing execution of the algorithm while the other is being written out) allows the algorithm to execute more quickly by performing CPU activity in parallel with I/O activity.

Pipelining

We can improve query-evaluation efficiency by reducing the number of temporary files that are produced. We achieve this reduction by combining several relational op- erations into a pipeline of operations, in which the results of one operation are passed along to the next operation in the pipeline. Evaluation as just described is called pipelined evaluation. Combining operations into a pipeline eliminates the cost of reading and writing temporary relations.

For example, consider the expression (Πa1,a2(r s)). If materialization were applied, evaluation would involve creating a temporary relation to hold the result of the join, and then reading back in the result to perform the projection. These operations can be combined: When the join operation generates a tuple of its result, it passes that tuple immediately to the project operation for processing. By combining the join and the projection, we avoid creating the intermediate result, and instead create the final result directly.

Implementation of Pipelining

We can implement a pipeline by constructing a single, complex operation that com- bines the operations that constitute the pipeline. Although this approach may be feasible for various frequently occurring situations, it is desirable in general to reuse the code for individual operations in the construction of a pipeline. Therefore, each operation in the pipeline is modeled as a separate process or thread within the system, which takes a stream of tuples from its pipelined inputs, and generates a stream of tuples for its output. For each pair of adjacent operations in the pipeline, the system creates a buffer to hold tuples being passed from one operation to the next.

In the example of Figure 13.10, all three operations can be placed in a pipeline, which passes the results of the selection to the join as they are generated. In turn, it passes the results of the join to the projection as they are generated. The memory requirements are low, since results of an operation are not stored for long. However, as a result of pipelining, the inputs to the operations are not available all at once for processing.

Pipelines can be executed in either of two ways:

1. Demand driven

2. Producer driven

In a demand-driven pipeline, the system makes repeated requests for tuples from the operation at the top of the pipeline. Each time that an operation receives a request for tuples, it computes the next tuple (or tuples) to be returned, and then returns that tuple. If the inputs of the operation are not pipelined, the next tuple(s) to be returned can be computed from the input relations, while the system keeps track of what has been returned so far. If it has some pipelined inputs, the operation also makes requests for tuples from its pipelined inputs. Using the tuples received from its pipelined inputs, the operation computes tuples for its output, and passes them up to its parent.

In a producer-driven pipeline, operations do not wait for requests to produce tuples, but instead generate the tuples eagerly. Each operation at the bottom of a pipeline continually generates output tuples, and puts them in its output buffer, until the buffer is full. An operation at any other level of a pipeline generates output tuples when it gets input tuples from lower down in the pipeline, until its output buffer is full. Once the operation uses a tuple from a pipelined input, it removes the tuple from its input buffer. In either case, once the output buffer is full, the operation waits until its parent operation removes tuples from the buffer, so that the buffer has space for more tuples. At this point, the operation generates more tuples, until the buffer is full again. The operation repeats this process until all the output tuples have been generated.

It is necessary for the system to switch between operations only when an output buffer is full, or an input buffer is empty and more input tuples are needed to generate any more output tuples. In a parallel-processing system, operations in a pipeline may be run concurrently on distinct processors (see Chapter 20).

Using producer-driven pipelining can be thought of as pushing data up an oper- ation tree from below, whereas using demand-driven pipelining can be thought of as pulling data up an operation tree from the top. Whereas tuples are generated eagerly in producer-driven pipelining, they are generated lazily, on demand, in demand- driven pipelining.

Each operation in a demand-driven pipeline can be implemented as an iterator, which provides the following functions: open(), next(), and close(). After a call to open(), each call to next() returns the next output tuple of the operation. The implementation of the operation in turn calls open() and next() on its inputs, to get its input tuples when required. The function close() tells an iterator that no more tuples are required. The iterator maintains the state of its execution in between calls, so that successive next() requests receive successive result tuples.

For example, for an iterator implementing the select operation using linear search, the open() operation starts a file scan, and the iterator’s state records the point to which the file has been scanned. When the next() function is called, the file scan con- tinues from after the previous point; when the next tuple satisfying the selection is found by scanning the file, the tuple is returned after storing the point where it was found in the iterator state. A merge – join iterator’s open() operation would open its inputs, and if they are not already sorted, it would also sort the inputs. On calls to next(), it would return the next pair of matching tuples. The state information would consist of up to where each input had been scanned.

Details of the implementation of iterators are left for you to complete in Exercise 13.12. Demand-driven pipelining is used more commonly than producer-driven pipelining, because it is easier to implement.

Evaluation Algorithms for Pipelining

Consider a join operation whose left-hand – side input is pipelined. Since it is pipe- lined, the input is not available all at once for processing by the join operation. This unavailability limits the choice of join algorithm to be used. Merge join, for example, cannot be used if the inputs are not sorted, since it is not possible to sort a relation until all the tuples are available — thus, in effect, turning pipelining into materialization. However, indexed nested-loop join can be used: As tuples are received for the left-hand side of the join, they can be used to index the right-hand – side relation, and to generate tuples in the join result. This example illustrates that choices regarding the algorithm used for an operation and choices regarding pipelining are not independent.

The restrictions on the evaluation algorithms that are eligible for use are a limiting factor for pipelining. As a result, despite the apparent advantages of pipelining, there are cases where materialization achieves lower overall cost. Suppose that the join of r and s is required, and input r is pipelined. If indexed nested-loop join is used to support pipelining, one access to disk may be needed for every tuple in the pipelined input relation. The cost of this technique is nr ∗ HTi, where HTi is the height of the index on s. With materialization, the cost of writing out r would be br . With a join technique such as hash join, it may be possible to perform the join with a cost of about 3(br + bs). If nr is substantially more than 4br + 3bs, materialization would be cheaper.

The effective use of pipelining requires the use of evaluation algorithms that can generate output tuples even as tuples are received for the inputs to the operation. We can distinguish between two cases:

1. Only one of the inputs to a join is pipelined.

2. Both inputs to the join are pipelined.

If only one of the inputs to a join is pipelined, indexed nested-loop join is a natural choice. If the pipelined input tuples are sorted on the join attributes, and the join condition is an equi-join, merge join can also be used. Hybrid hash – join can be used too, with the pipelined input as the probe relation. However, tuples that are not in the first partition will be output only after the entire pipelined input relation is received. Hybrid hash – join is useful if the nonpipelined input fits entirely in memory, or if at least most of that input fits in memory.

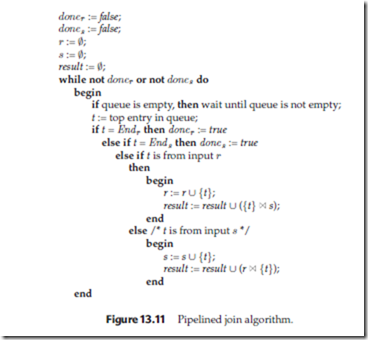

If both inputs are pipelined, the choice of join algorithms is more restricted. If both inputs are sorted on the join attribute, and the join condition is an equi-join, merge join can be used. Another alternative is the pipelined join technique, shown in Figure 13.11. The algorithm assumes that the input tuples for both input relations, r and s, are pipelined. Tuples made available for both relations are queued for processing in a single queue. Special queue entries, called Endr and Ends, which serve as end-of-file markers, are inserted in the queue after all tuples from r and s (respectively) have been generated. For efficient evaluation, appropriate indices should be built on the relations r and s. As tuples are added to r and s, the indices must be kept up to date.
